My 6cm antennas

Submitted by Thomas Nilsson on

7-element Yagi

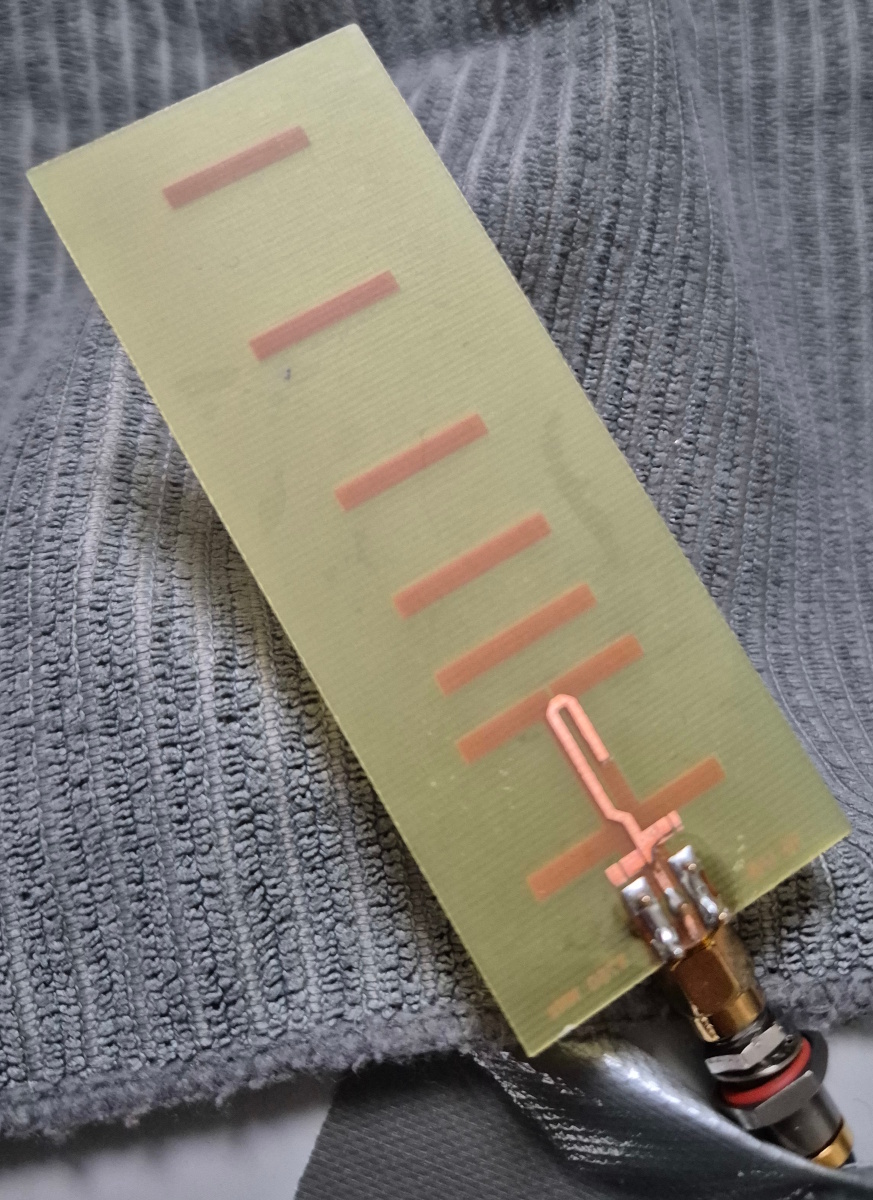

This antenna below is provided with the SG Lab 5.7 GHz transverter. It is a small 7 elements Yagi.

5.7 GHz 7 elements Yagi

 Note the size of the SMA-connector. The antenna works reasonable well, at least for testing.

50cm parabolic antenna

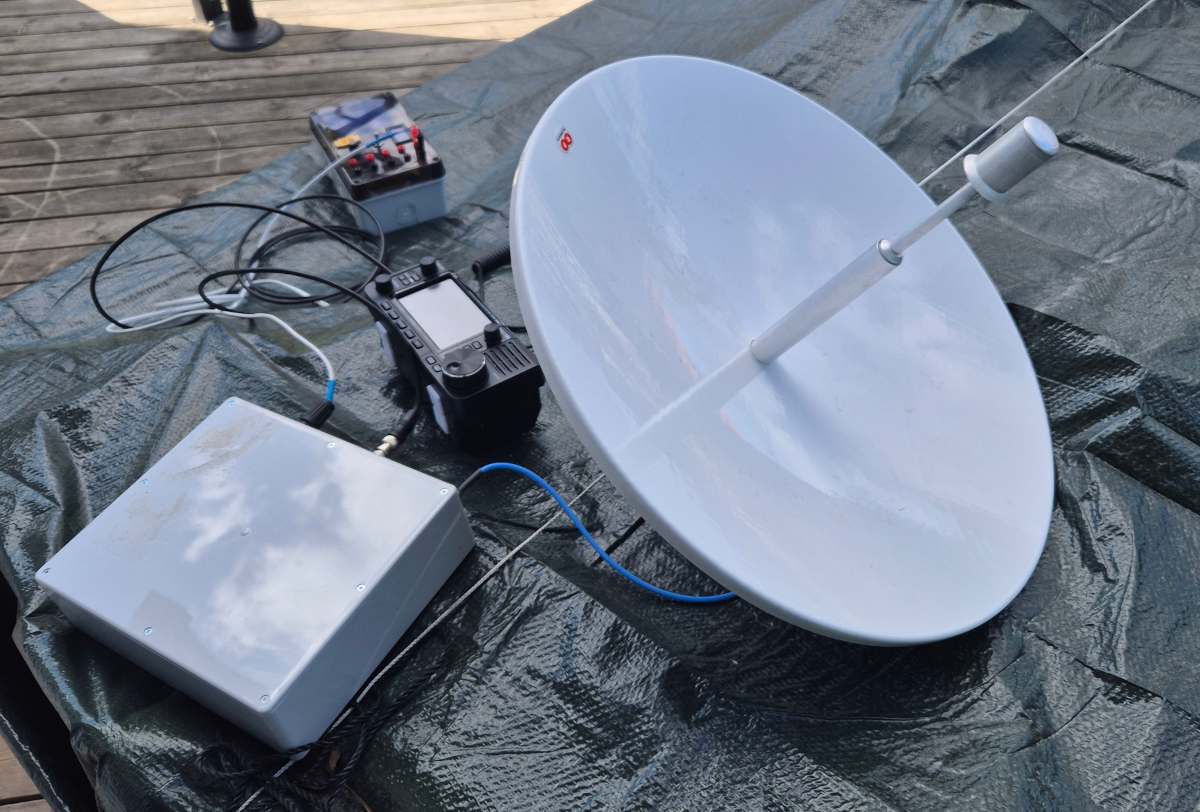

The parabolic antenna is a 50 cm dish originally to be used for 5GHz WiFi.

50cm parabolic reflector

It is delivered with the feeder and the reflector. The feeder can easily be mounted both for horizontal or vertical polarization.

I am not 100% sure but this compiled document might contain the correct description of the antenna set:
